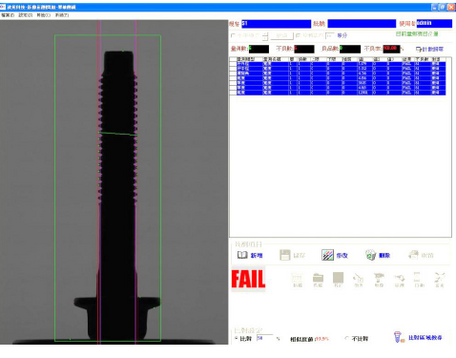

2D, 360 Degree Automated Inspection Station.  Created for First Piece , In Process, and Final inspection. Simple to set up, & has fast teach mode.  Full SPC capabilities for recording data.  Also remembers set up by part number.

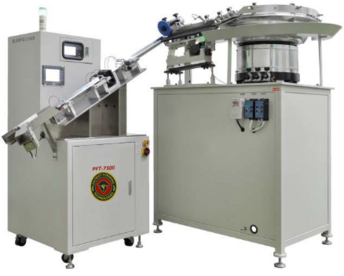

PFT-7200    Conveyor Belt Vision Sorter

See it in Action!

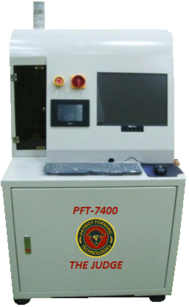

 "THE JUDGE"   PFT-7400 Series   2 D, 360 Degree   Lab Inspector

See it in Action!

Three Camera system for inspecting nuts, washers, and other products that require a faster sort at a more inexpensive price.

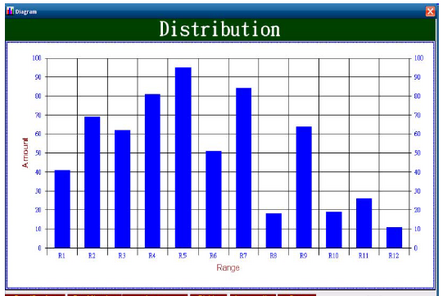

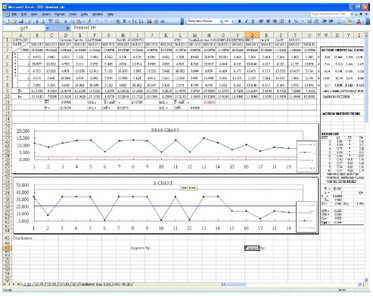

SPC Charts to Print or Store

Learn more about PFT's Sorting Equipment

High Quality Sorting & Inspection Equipment

      THE JUDGE

     Viewing Frame

       PFT-7400-48

      Width:   36mm

      Height: 48mm

       PFT-7400-90

      Width:    36mm

     Height:  90mm

      PFT-7400-200

      Width:    36mm

    Height:   200mm

with a very affordable Price means  minimal

Especially designed for hanging and rotating screws and bolts on a rotary dial.  This high speed sorter runs over 600 ppm

Simultaneous measurements for top/bottom and side view through a high tempered glass plate.  Very adaptable for nuts, screws, specials, clips, o-rings, & rubber parts. This high speed sorter also runs over 600 ppm

PFT-7300   "V" Track Eddy Current

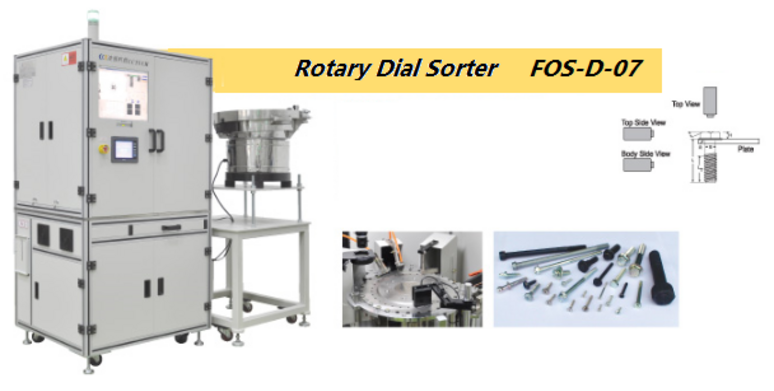

PFT-7000 Steel Rotary Disc Vision Sorter

Watch it in Motion

Rotating 360 Degree Base for Complete Coverage

 5 Seconds Each      1 Second for Data Extraction

See it in Action!

Static Output Functions

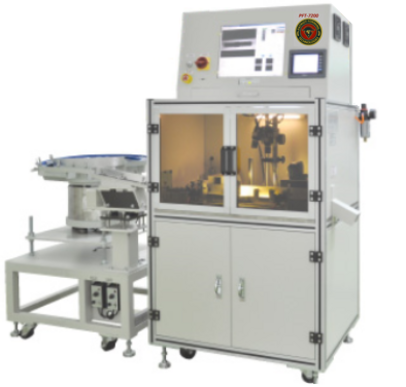

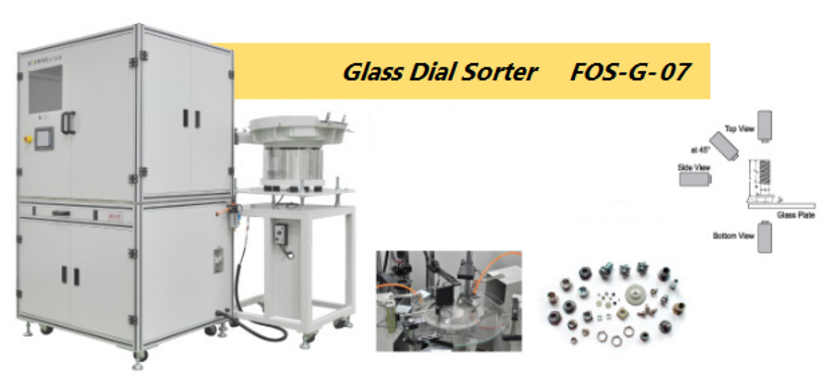

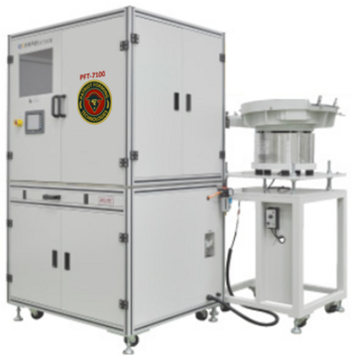

PFT-7100     Glass Dial Vision Sorter

See it in Action!

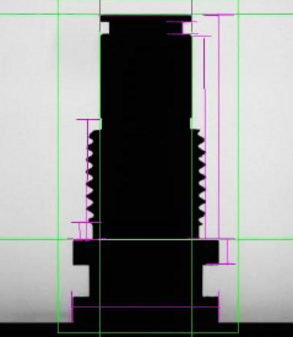

Across corner            Across flat                   Arc radius              Center to center            Center to edge

Chamfer angle          Concentricity              Diameter               Girth                                Height

Included angle          Major diameter          Max diameter      Max thickness                Max width

Min diameter            Min thickness             Min width             Minor diameter             Open crack / burrs

Parallel edge             Pitch                             Pitch Diameter     Point to line                   Point to point

Proportion                Roundness                   Thickness              Thread angle

Measuring capabilities include , but are not limited to:

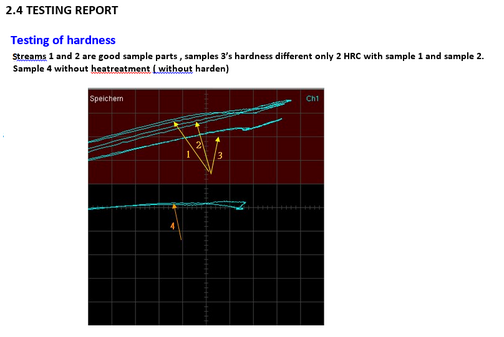

Eddy Current System for checking hardness of bolts, and studs.  Can give readings withing +/- 1.0 Point on "C" Scale

ppm and a quick return on investment !!!
